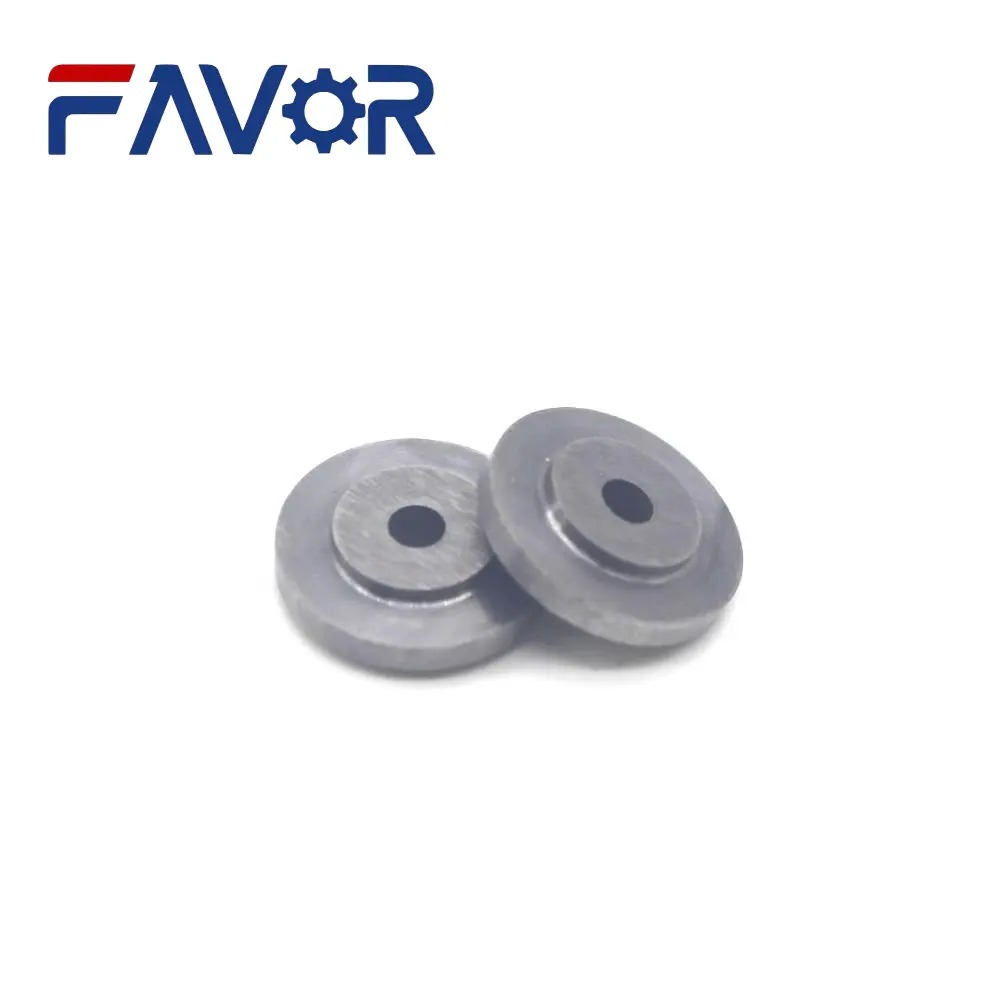

22997000 Rear Blade Guide Roller for S91 Automatic Cutter Parts

Place of Origin China
Brand Name Favor
Certification ISO
Delivery Time 3~7 days
Payment Terms Terms of payment: 100% T/T in advance,shipment upon receipt of payment.
Product Details
Model NO. 22997000 Automatic Grade Automatic
Warranty Unavailable Condition New
Weight (Kg) 0.01 Kg Usage Auto Cutter Machine
Description Guide Blade Roller Rear Machine Type Textile Machine
Type Guide Blade Roller Rear Applicable Industries Machinery Repair Shops
Packing 1PCS/Box Product Name Guide Blade Roller
Part No 22997000 Net Weight 0.007kg/PC
Transport Package Box Trademark FAVOR
Origin Guangdong, China HS Code 845190000
Production Capacity 1000 Piece/Pieces Per Month Package Size 24.00cm * 10.00cm * 9.00cm
Package Gross Weight 0.500kg
Leave a Message
Product Description
Product Overview

The 22997000 rear blade guide roller is a replacement cutter part designed for compatible S91 automatic cutting machines.

This component is installed in the cutter head blade guiding mechanism. It helps support and guide the blade during high speed reciprocating movement, reducing unwanted lateral movement and helping the blade maintain the correct cutting position.

A worn, damaged or incorrectly aligned blade guide roller may cause unstable blade movement, increased friction, abnormal noise, inaccurate cutting or premature blade wear.

Replacing the damaged roller with the correct cutter part helps restore stable blade guidance and supports reliable cutting performance.

Please provide the part number, machine model and photos of the existing component before ordering so that compatibility can be confirmed.

Product Information
Product Name Rear Blade Guide Roller
Original Description Guide Blade Roller Rear
Part Number 22997000
Suitable Machine Compatible S91 Automatic Cutter
Product Category Cutter Parts
Installation Area Cutter Head Blade Guide Mechanism
Application Blade Guidance and Positioning
Product Condition New
Sales Unit Piece
Packing Method Protective Export Packing
Available Shipping Methods International Express
Air Freight
Sea Freight
Product Function

The cutting blade moves continuously up and down inside the cutter head during automatic cutting operation.

The 22997000 rear blade guide roller helps support the rear area of the blade and guides it along the required movement path.

Correct blade guidance is important because excessive lateral movement may affect cutting accuracy and increase friction between the blade and nearby mechanical components.

A properly matched guide roller helps keep the blade in a stable position, supports smooth reciprocating movement and reduces unnecessary stress on the blade guiding system.

The exact installation position and adjustment method may vary according to the machine configuration. Installation should be completed by qualified maintenance personnel familiar with the S91 cutter head system.

Main Features
  • Accurate Part Number

    The clear part number 22997000 helps customers identify the required cutter parts and reduce ordering mistakes.

  • Designed for S91 Cutter

    Suitable for the blade guiding mechanism of compatible S91 automatic cutting machines.

  • Stable Blade Guidance

    Helps guide the blade during repeated high speed movement and supports stable cutting operation.

  • Compact Precision Component

    The compact structure is suitable for installation inside the cutter head where space and positioning accuracy are important.

  • Reliable Replacement Solution

    Suitable for replacing worn, damaged, loose or incorrectly rotating blade guide rollers.

  • Supports Cutting Accuracy

    Correct blade positioning helps maintain more stable cutting lines and consistent production results.

  • Inspection Before Shipment

    The product number, appearance, roller condition, quantity and packing condition are checked before dispatch.

  • Product Photos Available

    Clear product photos and packing photos can be provided before shipment for customer confirmation.

  • Protective Export Packing

    The product is packed carefully to reduce the risk of collision, moisture, deformation and transportation damage.

Product Benefits
  • Supports stable blade movement
  • Helps maintain correct blade position
  • Reduces unwanted lateral blade movement
  • Supports consistent cutting performance
  • Helps reduce abnormal friction
  • Helps protect nearby cutter head components
  • Suitable for maintenance and emergency replacement
  • Helps reduce unexpected machine downtime
Common Replacement Situations
  • The roller surface is visibly worn
  • The roller does not rotate smoothly
  • The component becomes loose
  • The roller is cracked or damaged
  • The blade moves from side to side
  • The cutter head produces abnormal noise
  • The blade wears unevenly
  • Cutting accuracy becomes unstable
  • The cutting edge becomes rough
  • The blade guiding mechanism requires maintenance

A damaged guide roller should be replaced promptly to reduce the risk of additional wear on the blade and nearby cutter parts.

Possible Symptoms of a Worn Guide Roller
  • Unstable blade movement
  • Increased blade vibration
  • Abnormal cutter head noise
  • Uneven blade wear
  • Increased cutting resistance
  • Rough material edges
  • Inaccurate cutting lines
  • Frequent blade damage
  • Reduced production stability

These symptoms may also be related to the blade, front guide, knife guide adjustment, cutter head alignment or other mechanical components. The complete blade guiding system should be checked before replacement.

Compatibility Confirmation

Blade guide rollers may look similar but have different dimensions, mounting structures, roller profiles and installation positions.

Please do not confirm compatibility only according to product appearance.

For accurate checking, please provide the following information.

  • Complete Part Number
  • Machine Model
  • Machine Serial Number if Available
  • Required Quantity
  • Photos of the Old Guide Roller
  • Photos of the Installation Position
  • Dimensions of the Old Component if Available
  • Delivery Country
  • City and Postal Code

The required part number should be 22997000. Please check every digit before confirming the order.

Quality Inspection

Each order is checked according to the confirmed product information before shipment.

The inspection process includes checking the product appearance, roller surface, rotating condition, mounting position, quantity and packaging.

Products with visible cracks, serious deformation, damaged mounting areas or abnormal roller movement will not be packed for shipment.

Product photos, inspection photos and packing photos can be provided before dispatch when required.

Installation and Maintenance
  • Switch off the machine before removing or installing cutter head components.
  • Check the existing blade, front guide, rear guide and related mounting components for wear or damage.
  • Clean the installation area before fitting the new guide roller.
  • Confirm that the roller is installed in the correct position and direction.
  • Check that the roller moves normally and does not create excessive resistance against the blade.
  • After installation, manually check the blade movement before restarting the machine.

Incorrect installation or adjustment may affect cutting performance and cause additional wear. Installation should be completed by experienced maintenance personnel.
