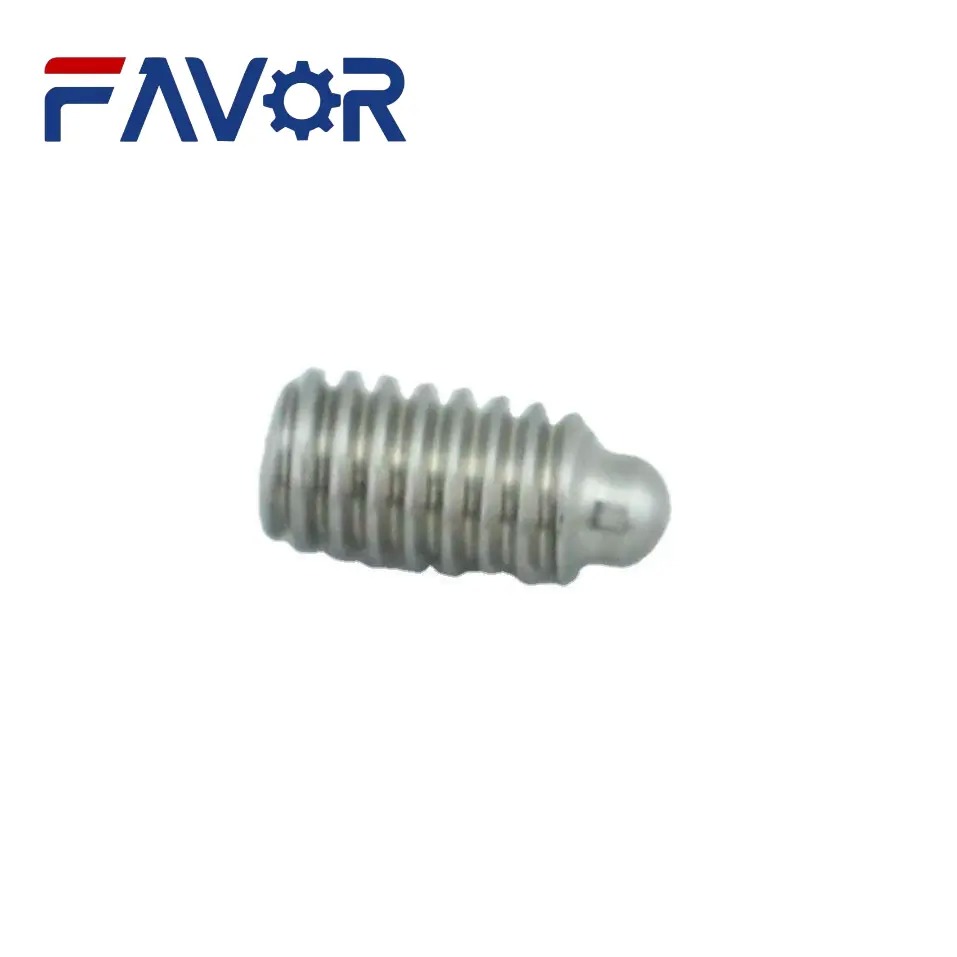

90191000 Bullet Nose Set Screw for DCS3500 Z1 Cutter Parts

  • 90191000 Bullet Nose Set Screw for DCS3500 Z1 Cutter Parts
Place of Origin China
Brand Name Favor
Certification ISO
Delivery Time 3~7 days
Payment Terms Terms of payment: 100% T/T in advance,shipment upon receipt of payment.
Product Details
Model NO. 90191000 Automatic Grade Automatic
Application Suitable For Cutter Spare Parts Machine Type Auto-Cutting Machine
Part Number 90191000 Use Industrial
Applicable Industries Machinery Repair Shops Marketing Type Hot Product 2019
After Warranty Service Online Support Package Standard Package
Transport Package By Box/Bag Specification SCREW, #8-32 X. 327 BULLET NOSE
Trademark FAVOR Origin Guangdong, China
HS Code 845190000 Production Capacity 1000 Piece/Pieces Per Month
Package Size 24.00cm * 12.00cm * 10.00cm Package Gross Weight 0.500kg
Leave a Message
Product Description
Product Overview

The 90191000 WC-055 bullet nose set screw is a small precision cutter part used in compatible automatic cutting machine blade holder assemblies.

The screw has a number 8-32 thread and a length of approximately 0.327 inch. Its rounded bullet nose provides a controlled contact point against the related blade holder component.

This part is commonly used with compatible WC-017 and WC-024 tangential blade holders and may be applied in DCS2600, DCS3500, Z1 and Taurus cutter configurations.

Although the screw is small, incorrect thread size, tip shape or length may affect blade retention and blade holder operation. Customers should confirm the part number and compare the old screw before ordering.

Product Information
Product Name Bullet Nose Set Screw
Part Number 90191000
Alternative Reference WC-055
Original Description Screw Set Number 8-32 x 0.327 Bullet Nose
Thread Specification Number 8-32
Screw Length Approximately 0.327 Inch
Tip Type Bullet Nose
Material Stainless Steel
Common Blade Holder Application
  • WC-017 Tangential Blade Holder
  • WC-024 Tangential Blade Holder
Compatible Cutter Models
  • DCS2600
  • DCS3500
  • Z1
  • Taurus
Product Category Cutter Parts
Application Blade Holder Retaining and Positioning
Product Condition New
Sales Unit Piece
Packing Method Protective Export Packing
Shipping Methods
  • International Express
  • Air Freight
  • Sea Freight
Product Function

The 90191000 bullet nose set screw is installed in the related tangential blade holder assembly.

When tightened, the rounded tip contacts the corresponding blade holder or retaining surface. This helps secure the blade or related holder component in the required position.

The bullet nose design provides a smoother contact point than a sharp pointed screw. It helps apply pressure to the related component while reducing concentrated surface damage.

Correct thread engagement and installation depth are important. A screw that is too long, too short or manufactured with the wrong thread may not retain the blade holder correctly.

A worn or damaged screw may loosen during machine operation, fail to hold the component securely or damage the internal thread of the blade holder.

Main Features
Accurate Part Identification

The clear part number 90191000 and reference WC-055 make it easier to compare the required cutter parts with machine documentation and previous purchasing records.

Number 8-32 Thread

The specified thread is designed to match the corresponding threaded position in the compatible blade holder.

0.327 Inch Length

The specified screw length helps maintain the required installation depth without unnecessary interference.

Bullet Nose Tip

The rounded tip provides controlled contact with the retained component and helps reduce concentrated marking compared with a sharp point.

Stainless Steel Construction

The stainless steel structure provides mechanical strength and resistance to normal oxidation during storage and machine use.

Blade Holder Application

The screw is commonly used as a retaining component for compatible tangential blade holder assemblies.

Compact Precision Part

The product is suitable for regular maintenance, emergency replacement and cutter parts inventory.
