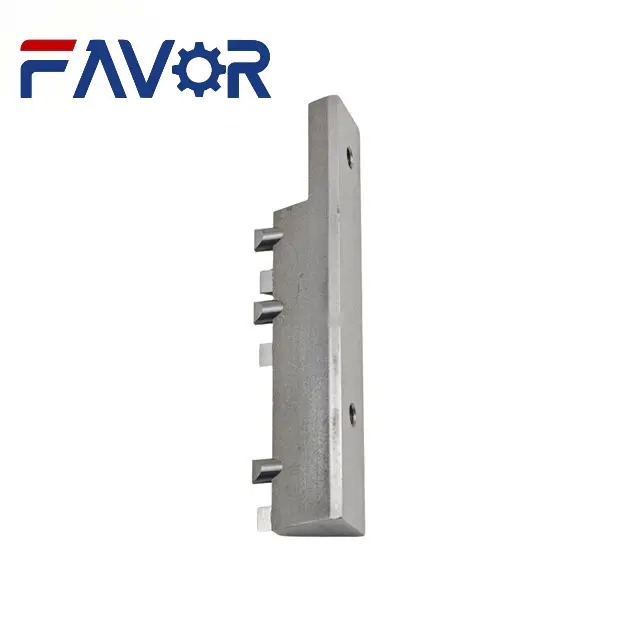

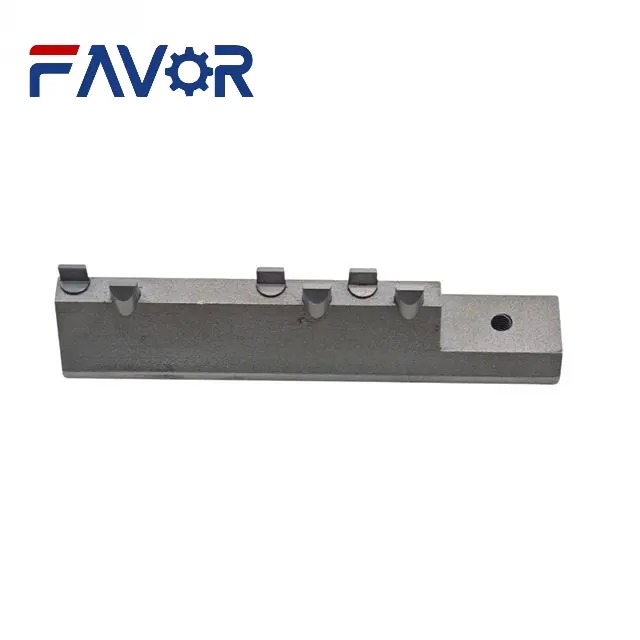

1012402000 Blade Guide Round Inserts for ATRIA Automatic Cutting Machine Cutter Parts

  • 1012402000 Blade Guide Round Inserts for ATRIA Automatic Cutting Machine Cutter Parts
  • 1012402000 Blade Guide Round Inserts for ATRIA Automatic Cutting Machine Cutter Parts
Place of Origin China
Brand Name Favor
Certification ISO
Delivery Time 3~7 days
Payment Terms Terms of payment: 100% T/T in advance,shipment upon receipt of payment.
Product Details
Model NO. 1012402000 Power Source Pneumatic
Automatic Grade Automatic Warranty Unavailable
Condition New Material Alloy
Application Metal Cutting Machine, Suitable For Atria Cutting Standard Standard
Weight (Kg) 0.12 Kg Description 1012402000 Blade Guide, Round Inserts
Machine Type Atria Export Markets Europe, Asia, Africa, America
Use Industrial MOQ 1 PC
Type Blade Guide, Round Inserts Applicable Industries Manufacturing Plant, Machinery Repair Shops
Quality Guaranteed Package 1PCS/Plastic Bag
Transport Package Carton Trademark FAVOR
Origin Guangdong, China HS Code 845190000
Production Capacity 5000 Pieces Per Month Package Size 24.00cm * 10.00cm * 10.00cm
Package Gross Weight 0.500kg
Leave a Message
Product Description
Product Description

The 1012402000 Blade Guide with Round Inserts is a precision cutter part designed for ATRIA automatic cutting machines.

This component guides and supports the cutting blade during machine operation. It helps maintain stable blade movement, accurate cutting alignment, and consistent cutting performance.

A worn or damaged blade guide may cause unstable blade movement, inaccurate cutting edges, increased blade wear, or reduced cutting efficiency. Replacing the blade guide in time can help restore the normal operation of the cutting head and reduce unexpected machine downtime.

This cutter part is suitable for maintenance companies, garment factories, automotive interior manufacturers, furniture factories, textile cutting workshops, and distributors of automatic cutting machine parts.

Product Information
Part Number
1012402000
Product Name
Blade Guide Round Inserts
Product Category
Cutter Parts
Suitable Machine
ATRIA Automatic Cutting Machine
Application
Automatic Cutting Machine Cutting Head
Condition
New
Unit
PCS
Reference Weight
Approximately 0.12 kg per piece
Minimum Order Quantity
1 Piece
Place of Origin
China
Packing
Individual Protective Packing and Export Carton
Product Function

The blade guide is installed in the cutting head of the automatic cutting machine.

Its main function is to guide and support the cutting blade during high speed reciprocating movement. It helps keep the blade in the correct operating position and supports stable cutting through different layers of textile materials.

A correctly matched blade guide can help reduce blade deviation, irregular movement, premature blade wear, and inaccurate cutting results.

Main Features
Accurate Part Matching

Manufactured according to the required installation dimensions for part number 1012402000.

Stable Blade Guidance

Supports stable blade movement during continuous automatic cutting operations.

Reliable Installation

Designed for proper positioning and secure installation in the cutting head assembly.

Durable Construction

Suitable for regular industrial cutting machine operation and maintenance replacement.

Consistent Cutting Performance

Helps maintain cutting accuracy and stable cutting quality after replacing a worn blade guide.

Quality Inspection

The dimensions, appearance, installation position, and overall condition are checked before shipment.

Product Applications

This cutter part can be used in automatic cutting operations for garment manufacturing, automotive interiors, upholstered furniture, technical textiles, composite materials, and other industrial fabric processing applications.

It is suitable for machine maintenance, preventive replacement, cutting head repair, and spare parts inventory.

When Should the Blade Guide Be Replaced

The blade guide should be inspected when the machine shows unstable blade movement, inaccurate cutting lines, abnormal blade vibration, excessive blade wear, or reduced cutting quality.

Replacement is also recommended when the guide is visibly worn, damaged, deformed, or unable to hold the blade in the correct position.

Compatibility Confirmation

To avoid ordering an incorrect cutter part, please provide the following information before placing an order.

  • Part number
  • Machine brand and model
  • Photo of the existing part
  • Photo of the installation position
  • Required quantity
  • Destination country

Our team will compare the information and confirm compatibility before shipment.

Quality Control

Each blade guide is checked before packing.

The inspection includes product appearance, critical dimensions, installation structure, surface condition, and quantity.

For products with similar shapes or different machine versions, we recommend confirming the part number and old part photos before ordering.

Packing and Delivery

Each product is packed separately to help prevent scratches, moisture, and damage during transportation.

The products are then placed in a strong export carton according to the order quantity.

Shipping can be arranged by DHL, FedEx, UPS, air freight, sea freight, or the customer’s appointed forwarding agent.

Stock availability and delivery time will be confirmed before the order is placed.

Why Choose Us
Professional Cutter Parts Supplier

We specialize in cutter parts and consumables for automatic cutting machines.

Wide Product Range

We supply blades, sharpening parts, blade guides, pulleys, bearings, belts, motors, sensors, maintenance kits, bristle blocks, and other cutting machine parts.

Compatibility Support

Our team checks the part number, machine model, product photos, and installation position before confirming the order.

Strict Inspection

Products are inspected before shipment to reduce incorrect deliveries and quality problems.

Fast Response

We provide quotations, product confirmation, packing information, and shipping support for international customers.

Global Supply

We support customers and distributors in Bangladesh, Indonesia, Brazil, the Philippines, the United States, Egypt, and European countries.

Frequently Asked Questions
What machine is this blade guide suitable for

Part number 1012402000 is designed for ATRIA automatic cutting machine applications.

How can I confirm whether it fits my machine

Please send us the machine model, part number, old part photos, and installation position. We will check the information before confirming the order.

What is the minimum order quantity

The minimum order quantity is one piece.

Do you inspect the product before shipment

Yes. The appearance, dimensions, quantity, and product condition are checked before packing.

Can you supply other ATRIA cutter parts

Yes. We can supply different cutter parts and consumables for ATRIA automatic cutting machines. Please send us your parts list or required part numbers.

Can you ship internationally

Yes. We can arrange international shipping by express courier, air freight, sea freight, or your appointed forwarding agent.
